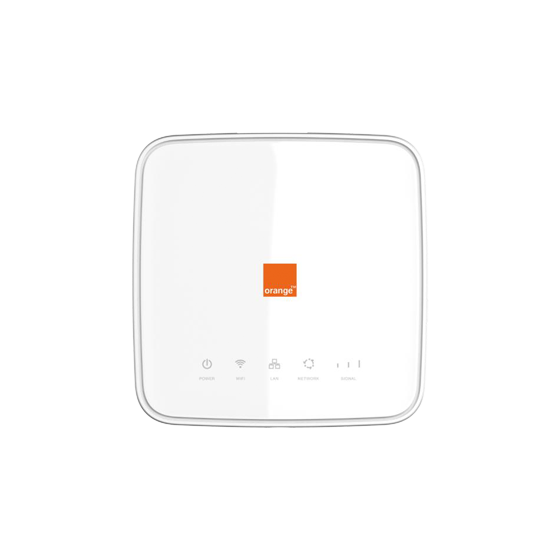

LTE cat4 Home Station
HH40V for Orange
Specifications
Network
LTE/DC-HSPA+/HSPA+/HSUPA/HSDPA/UMTS/EDGE/GPRS
Frequency
FDD LTE Band 1, 3, 7,8,20 WCDMA Band 1, 3, 8 GSM Band 850/900/1800/1900MHz
Max Data Rate
FDD-LTE DL 150Mbps/UL 50Mbps
Chipset
Qualcomm MDM9207
WiFi
802.11 b/g/n, 2.4GHz, 2X2, support up to 32 WiFi users
Memory
2GbROM+1Gb RAM
External Connector
2x RJ45(2x100Mbps) , 1xWAN/LAN, 1xLAN 1X Micro USB 2.0 power connector 1x 3FF SIM slot 1x Reset Hole 2x External LTE antenna connectors
LED
Signal, WiFi, TEL, Power, Network
Button Key
1×Power, 1×Resethole, 1×WPS
Dimension
134x134x31.5mm
Weight
320g
Certification
CE/WEEE/WiFi alliance /RoHS/REACH
DISCLAIMER:
“Specs & colors may vary in different countries.”
“Data based on results from internal lab tests. Battery life depends on actual usage situation.”
